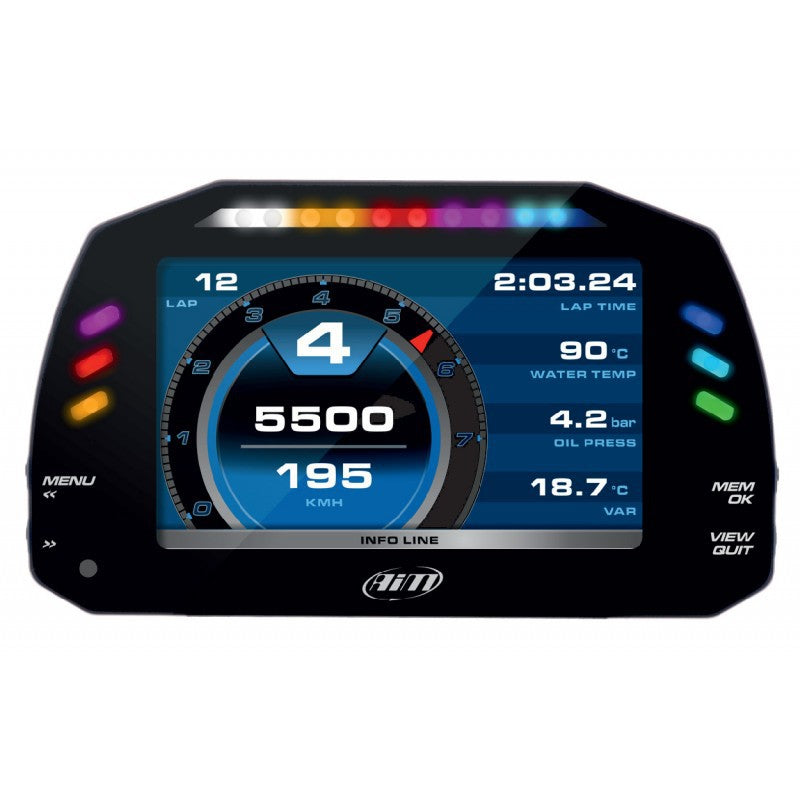

7" TFT Digital Dashboard Display

The AiM MXG 1.3 Strada is a premium 7-inch TFT digital dashboard designed for drivers who want professional-grade vehicle monitoring in a highly customizable and easy-to-read display. Developed using AiM's renowned motorsport technology, the MXG 1.3 Strada provides real-time access to critical engine and vehicle data through a large, high-resolution color screen.

Ideal for performance road cars, track cars, race cars, and custom motorsport builds, the MXG 1.3 Strada transforms complex vehicle information into clear, intuitive layouts that help drivers stay informed without distraction.

Technical Specifications

Display Size: 7" TFT Color Display
Resolution: 800 × 480 Pixels
Display Brightness: 700 cd/m²
Contrast Ratio: 1000:1
Housing Material: Anodized Aluminum
Protection Rating: IP65
Weight: 950g
Ambient Light Sensor: Automatic Brightness Adjustment
CAN Connections: 3 CAN Channels
Analog Inputs: 8 Fully Configurable Inputs
Digital Output: 1 Configurable Output (1A Max)

Connectivity & Compatibility

• Compatible with 2,000+ ECU protocols
• Supports major OEM and aftermarket ECUs
• CAN Bus integration
• GPS module compatibility
• Expandable with AiM sensors and accessories
• Fully configurable display pages and data channels

Key Features

• Large 7-inch TFT color display
• Fully customizable screen layouts
• 10 configurable RGB shift lights
• 8 configurable RGB alarm LEDs
• Automatic brightness adjustment for day and night driving
• High-visibility display with anti-glare performance
• Professional motorsport-inspired user interface
• Rugged IP65-rated aluminum construction

What Sets It Apart

Unlike traditional analog gauges or small digital displays, the MXG 1.3 Strada provides a centralized dashboard solution capable of displaying multiple channels simultaneously on a large 7-inch screen.

The Strada version is ideal for drivers who want a sophisticated display dashboard without the complexity of a full data logging system. It focuses on delivering critical information clearly and efficiently while maintaining seamless ECU integration.

Performance Advantage

The MXG 1.3 Strada allows drivers to monitor RPM, gear position, temperatures, pressures, fuel levels, warning alerts, and other vital vehicle parameters in real time. With fully customizable layouts, drivers can prioritize the information most relevant to their vehicle and driving style.

Ideal For

• Performance Road Cars
• Track Day Vehicles
• Time Attack Cars
• GT Cars
• Touring Cars
• Drift Cars
• Custom Motorsport Builds
• ECU-Based Vehicle Management Systems
