AIM MXS DASH LOGGER

  • Sale
  • Regular price MYR 9,999.00


MXS 1.2, the evolution of MXS, is the dashlogger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog/digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 5" display has been specifically designed for small cockpits installation.



CAN Output

With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

Freely configurable pages

You can define all the custom pages you wish, choosing among a wide library
of page styles, defining which data to be shown, their end of scale and measure units.Swapping between pages can be managed pushing one or two pushbuttons.

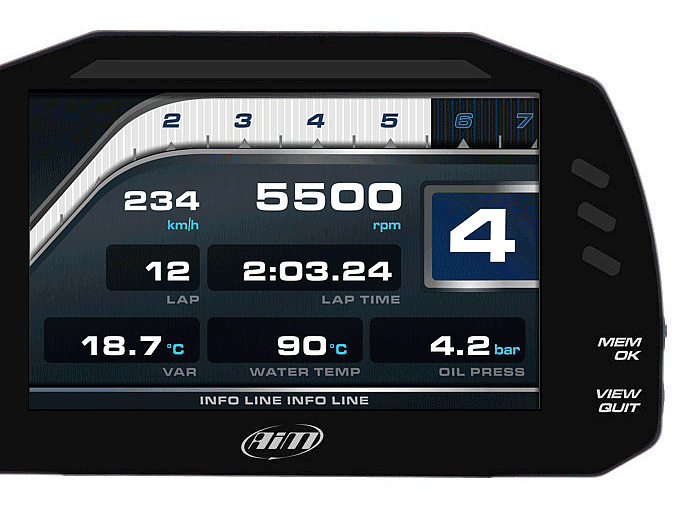

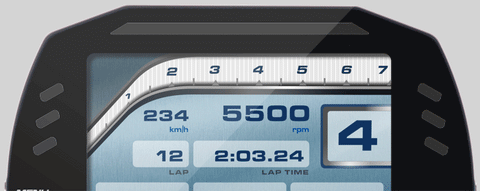

High contrast TFT display

A high contrast TFT display identifies MXS 1.2 at the first glance.An ambient light sensor keeps the backlight at optimum brightness levels.

Flexible alarms

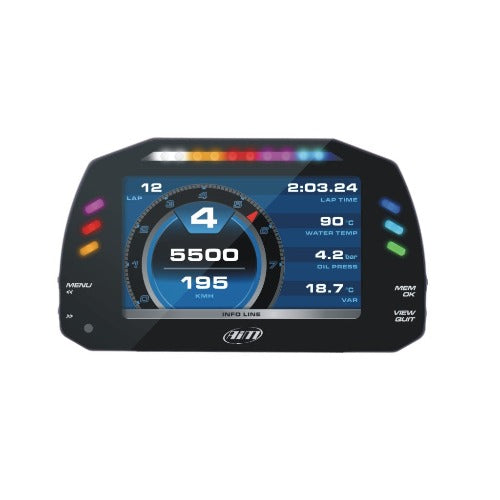

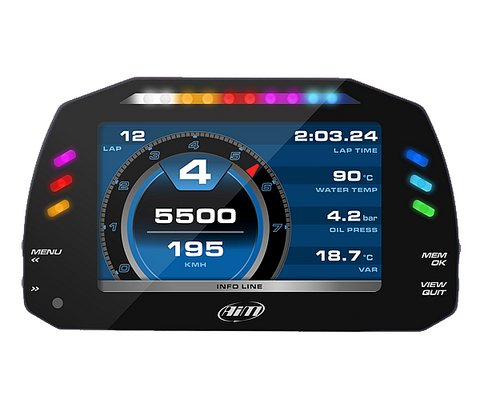

MXS 1.2 features six configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities.

Two digital outputs

Features two digital outputs. The two digital outputs (Dout) are LOW SIDE type
(switch to ground): they can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
