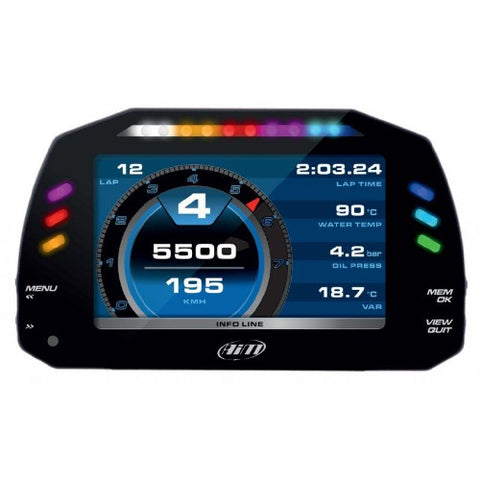

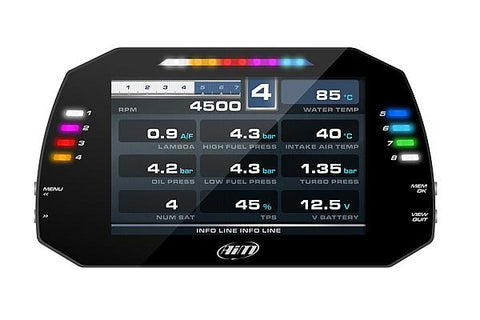

AiM MXG 1.3 [7"] DASH & DATA LOGGER

AiM MXG 1.3 [7"] DASH & DATA LOGGER

Regular price MYR 14,300.00
Regular price Sale price MYR 14,300.00
Sale Sold out
Tax included.

MXG 1.3, the evolution of MXG, is the dashlogger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 module included in the kit, analog/digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 7" display makes it perfect for wide cockpits installation.

CAN output

With the CAN output you can send messages directly to an existing CAN in order to improve the range of vehicle control possibilities.

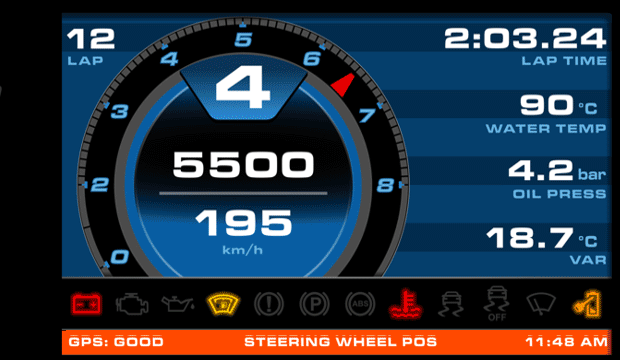

Freely configurable pages

You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two push-buttons.

High contrast TFT display

A high contrast display identifies MXP Strada at the first glance. An ambient light sensor keeps the back-light at optimum brightness levels.

Two digital outputs

MXG features a LOW SIDE type (switch to ground) digital output configurable in order to be activated/deactivated depending on the value of the analog/digital inputs or on impulses coming from the ECU. This permits to automatically run external systems, i.e. to switch on/off additional lights, to activate/deactivate a cooling fan or circulation pumps, etc. when a certain event happens.

Camera inputs, also for mirror camera

Two analog camera inputs are available to swap your display into a mirror camera through push-button command or event management.

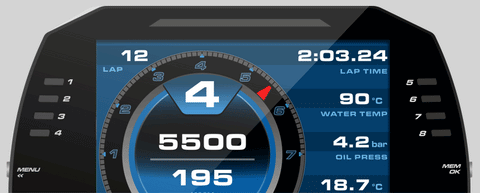

Integrated shift light array

Choose from a host of advanced multicoloured RGB shift light patterns that can be customized as you like, and for each unique gear when required.
