AiM MXG 1.3 STRADA [7"] DASH

AiM MXG 1.3 STRADA [7"] DASH

Regular price MYR 7,800.00
Regular price Sale price MYR 7,800.00
Sale Sold out
Tax included.

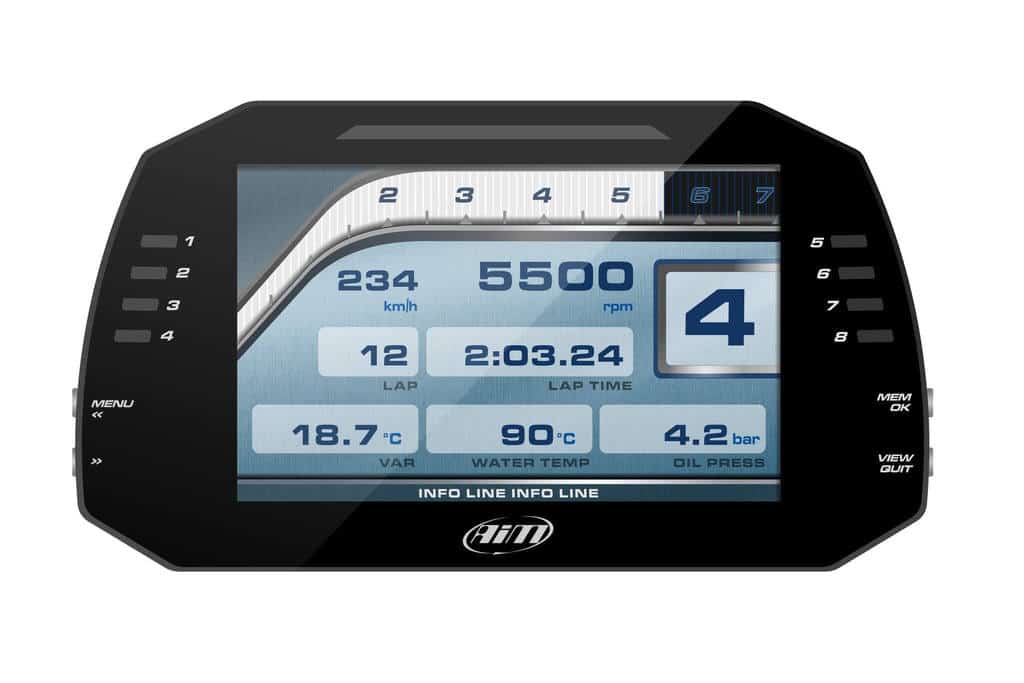

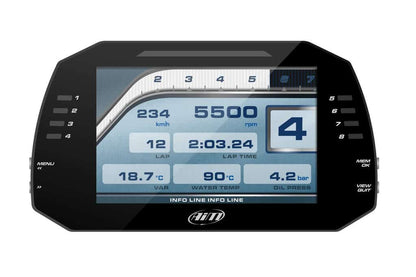

MXG 1.3 Strada is a 7" color display with great visual impact, configurable to show lap times and all the info coming from the Engine Control Unit, analog/digital inputs, pre-defined math channels.



Freely configurable pages

You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two push-buttons.

High contrast TFT display

A high contrast display identifies MXG Strada at the first glance. An ambient light sensor keeps the back-light at optimum brightness levels.

Flexible alarms & custom street icons

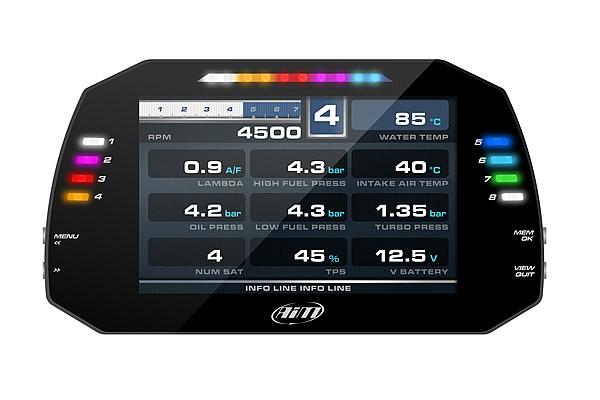

MXG 1.2 Strada features eight configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities. Furthermore you can select the street icons you need among the wide list you will find in "Race Studio 3 - Icons Management" and set them up the way you prefer or according with your needs. Any of them is fully configurable and if this shouldn't be enough, you will be able to upload and set up your own customized icons

Two digital outputs

MXG features a LOW SIDE type (switch to ground) digital output configurable in order to be activated/deactivated depending on the value of the analog/digital inputs or on impulses coming from the ECU. This permits to automatically run external systems, i.e. to switch on/off additional lights, to activate/deactivate a cooling fan or circulation pumps, etc. when a certain event happens.

Camera inputs, also for mirror camera

Two analog camera inputs are available to swap your display into a mirror camera through push-button command or event management.

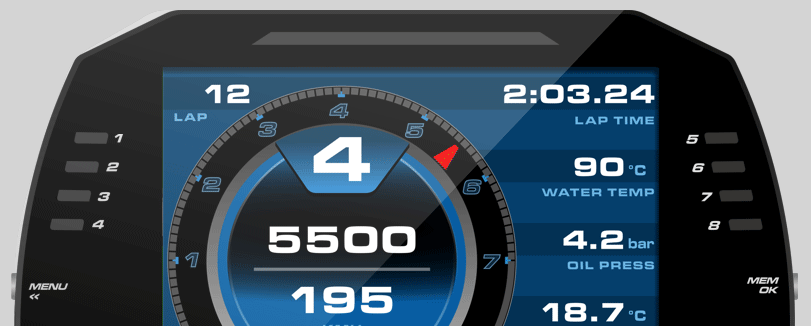

Integrated shift light array

Choose from a host of advanced multicoloured RGB shift light patterns that can be customized as you like, and for each unique gear when required.
