AiM MXS 1.3 STRADA [5"] DASH

MXS 1.3 Strada, the evolution of MXS Strada, is a 5" color display with great visual impact, configurable to show lap times and all the info coming from the Engine Control Unit, analog/digital inputs, pre-defined math channels.

CAN Output

With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

Watch your data in pre-configured pages

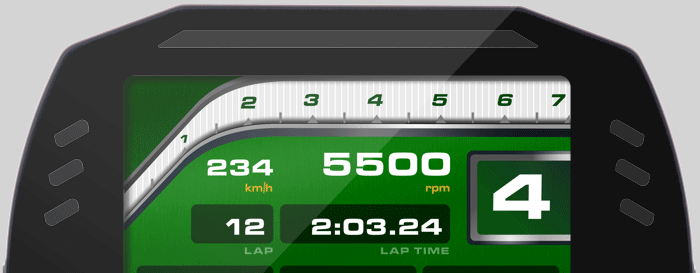

MXS 1.3 Strada shows, together with RPM scale, all the data you need, like speed, water temperature and oil pressure, laptimes and much more... You can choose the custom pages you wish among a wide library of page styles,
defining which data to be shown, their end of scale and measure units. Swapping between pages is quite easy using the pushbuttons.

High contrast TFT display

MXS 1.3 Strada features a high contrast TFT display: its visual quality is always
optimal as its ambient light sensor keeps the backlight at the best brightness levels. The dash is of course available also in the "Street Icons" version
(fuel, oil, water temp., etc.)

Flexible alarms

The ten multicolored RGB shift lights can be customized as you like, defining the RPM threshold for each single gear. The same flexibility applies to the configurable RGB alarm LEDs: you can configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, math channels or - optionally - GPS information. You choose conditions and colors: select a solid alarm or flashing one - and the flashing frequency. It is also possible to configure an accompanying text message, and set the alarm priorities.

Two digital outputs

MXS 1.3 Strada features a LOW SIDE type (switch to ground) digital output configurable in order to be activated/deactivated depending on the value of the analog/digital inputs or on impulses coming from the ECU. This permits to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain
event happens.

Camera inputs, also for mirror camera

Two analog camera inputs are available, to swap your display into a mirror camera, through pushbutton command or event management.
