Racelogic

VBOX PERFORMANCE BOX TOUCH

Name: VBOX PERFORMANCE BOX TOUCH
Brand: Racelogic
SKU: DLOGGER-0005
Price: 4199.0 MYR
Availability: OutOfStock

MYR 4,199.00

Sale Sold out

Tax included.

Product variants

Quantity

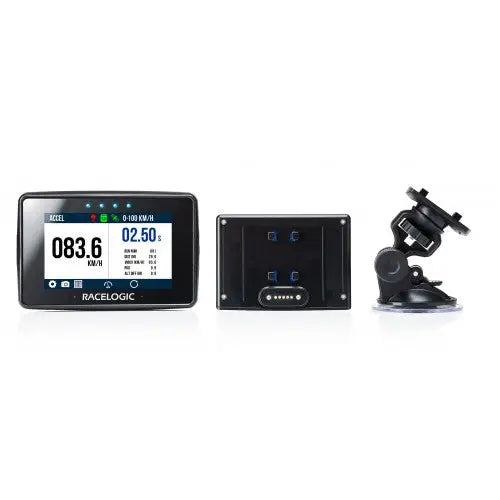

RACELOGIC’s Performance Box Touch measures speed, lap and split times, delta-T, acceleration, deceleration as well as distance and more. All these parameters are logged to an SD card 25 times per second and can be viewed on screen and analysed in detail using the VBOX Test Suite or Circuit Tools software provided.

Large Touch Screen

4.3" TFT daylight readable capacitive touch screen, 480*800 pixels

Live Slope Correction

The slope correct function for accel tests will correct the acceleration time result relative to the gradient the test was performed on and display the result live on screen.

6 hrs battery lifetime

Optional clip-on battery allows you to record for up to 6 hours without plugging in the power lead.

Inbuilt GNSS Antenna

25 Hz GNSS receiver with internal patch antenna and optional external GNSS antenna (overrides the internal antenna when connected)

SD Card Logging

All these parameters are logged to an SD card ten times per second and can be viewed and analysed in detail using the supplied software.

Performance Box Touch has four operation modes available which allow you to conduct a range of performance tests and functions: Accel, Decel, Lap Timing, and Speed.

Acceleration Testing

Acceleration tests: 0–60, 0–100, 100–200 km/h or mph.
Concurrent acceleration tests: Since firmware 1.4, it is possible to conduct four concurrent acceleration tests, visible via two new acceleration screens - Secondary and Best Results.
Other predefined tests: 0–100–0, 0–200–0, 0–300-0 and 0–400-0 km/h or mph tests or distance including 0–400 and 0–1000 meters as well as 0–¼ mile and 0–½ mile.
Custom tests can be configured, and other options include enabling or disabling alert at end of test, one-foot rollout and slope correction.
Screen displays time, run number, distance, VMAX, Peak G and altitude difference

Deceleration Testing

Deceleration tests: 60-0, 100-0, 200–0, 300–0 km/h or mph.
Custom tests, allowing the user to define their own configurable settings.
Screen displays time, run number, distance, Peak G and altitude difference. Units of measurement for speed or distance can be displayed in metric or imperial and easily swapped between.

Lap Timing

Sophisticated lap timer with an updatable built-in database of over 800 circuits, real-time Delta-time, Delta-speed (shown via LEDs), Best Lap Time, Current Lap Time, Total Session Time and Lap Count.

Virtual Start/Finish Lines: Using GPS, there is no need for an external beacon or transmitter, as timing will start with vehicle movement. Separate start and finish lines can be set for sprint or hill climbing.
